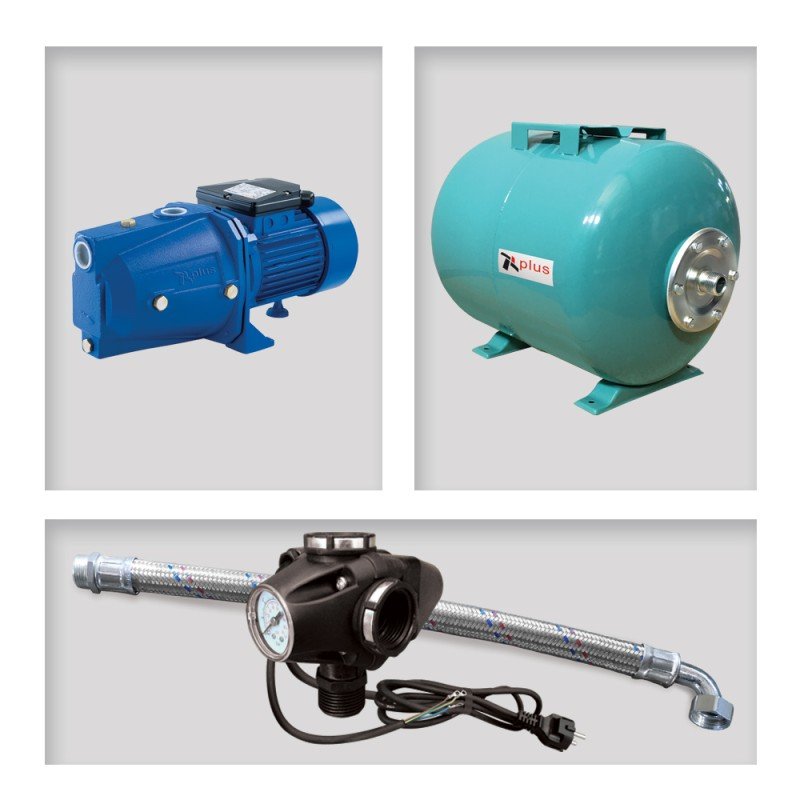

The pressure assembly consists of: • Pump • Expansion tank • Pressure gauge kit with manometer • Hose - To properly protect the system, a water shortage monitor is needed (see 107104)
Attributes
Ambient temperature (°C)
40
Automatic Suction (M)
1
Body construction material
Χυτοσίδηρος
Capacity (Lt)
80
Engine Power (Hp)
1,00
Guy
JM10
Impeller construction material
Ανοξείδωτο ατσάλι AISI 304
Layout
ΟΡΙΖΟΝΤΙΟ
Max Delivery (m3/h)
3,00
Max Performance (M)
53,00
Pump type
JET
Suction Measures (M)
8
Voltage (Volts)
220
Έλεγχος πίεσης
Πιεσοστάτης
Στόμιο εισαγωγής (Inch)
1"-25mm
Στόμιο εξαγωγής (Inch)
1"-25mm
Θερμοκρασία υγρού (°C)
40
